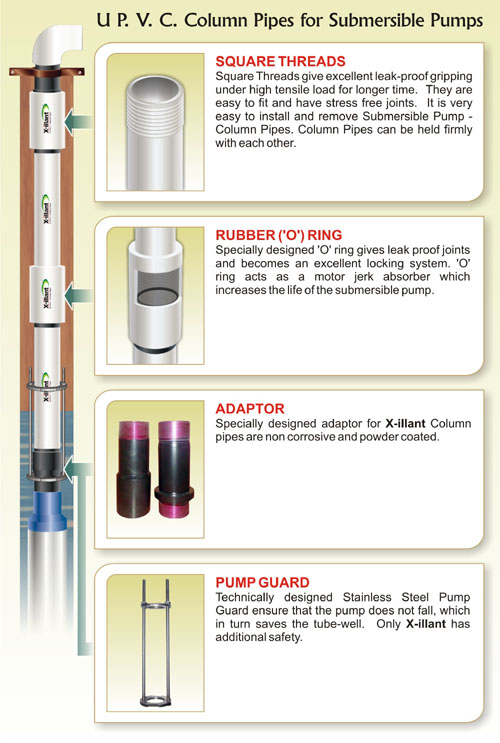

SQUARE THREADS
RUBBER 'O' RING
ADAPTOR
PUMP GUARD
More Details...
A PRODUCT OF
ISO 9001 : 2000
CERTIFIED
COMPANY

uPVC COLUMN PIPES
Capacity to pull out weight of Submersible pump & " X - illant " Column pipes with chain pulley
(in Kg.)
  Technical Specification :
Size
of Pipe
1"
20mm
1¼''
32mm
1½''
40mm
2"
50mm
2½''
65mm
3"
80mm
4"
100mm
Medium 750 1230 1340 1530 1940 2740 4080
Standard 1320 1550 1720 2200 2700 4100 5750
Heavy -- -- -- 2860 4200 5750 9500
*Technical specifications are subject to change without prior notice.
  Fitting Instruction :
1. Highslide JS
Fit male thread of C.I. adaptor with female threads of submersible pump using chain wren
2. Highslide JS
Fit male square threads of Jaldhara column pipe with female thread of pump guard / adaptor.
3. Highslide JS
Don't use oil on threads of Jaldhara column pipes and always clean the thread of pipes with water before use and check the proper fitment of rubber sealing element.
4. Highslide JS
Always hold the coupler of pipe by hand or wrench during fitment of pipe so that coupler does not get turned.
5. Highslide JS
Always tight the metal clamp at marked place during lowering of pipe and lower the pipe by the help of chain pulley.
