SUBMERSIBLE PUMP SET |

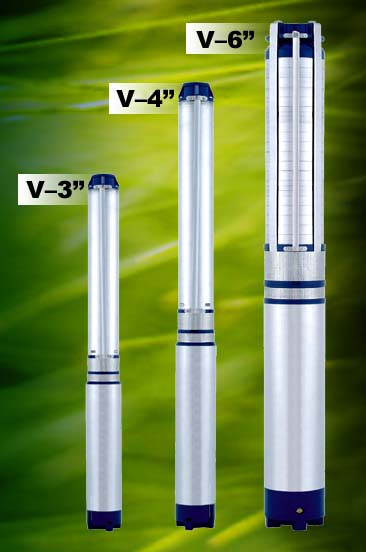

Rutvi Enterprises is a professional company in supplying " X - illant " Brand Submersible pump sets available in the range of V - 3, V - 4, V - 6, (S.S. Body). Design of the " X - illant " Submersible is prepared by the expert qualified Engineers having wide experience in Submersible field, the accurate inspection and sharp accuracy. Each " X - illant " Submersible pump sets passed through many testing stage before it reaches to our valued customers. |
 Technical Spesification of pump :
| Name of Parts |
V – 3” Pump |
V – 4” Pump |
V –6” Pump |
| Impeller |
Noryl GFN |
Noryl GFN |
Brass |
| Diffuser |
Noryl GFN |
Noryl GFN |
S.S. / C.I. |
| Stage Casing |
Stainless Still |
Stainless Still |
Stainless Still |
| Pump Shell |
Stainless Still |
Stainless Still |
-- |
| Pump Shaft |
S.S. - 304 |
S.S. - 304 |
S.S. – 304 |
| Suction Breaket |
Brass / C.I. |
Brass / C.I. |
C.I. |
| Outlet |
Brass / C.I. |
Brass / C.I. |
C.I. |
| Middle Stage |
C.I. |
Noryl |
S.S. / C.I. |
| Middle Bush |
Leaded Bronze |
Leaded Bronze |
Leaded Bronze |
| Strainer |
Stainless Still |
Stainless Still |
Stainless Still |
| Bush |
Leaded Bronze |
Leaded Bronze |
Leaded Bronze |
| Hardware |
S.S. - 304 |
S.S. - 304 |
S.S. - 304 |
|
Technical Spesification of Motor :
| Name of Parts |
V – 3” Motor |
V – 4” Motor |
V –6”Motor |
| Stamping |
2212 Russian |
2212 Russian |
2212 Russian |
| Shaft |
S.S. – 410 |
S.S. – 410 |
S.S. – 431 |
| Thrust Bearing |
Teflon S.S. - 304 |
Teflon S.S. - 304 |
Teflon S.S. - 304 |
| Housing |
Brass / C.I. |
Brass / C.I. |
Brass / C.I. |
| Bearing Bush |
Leaded Bronze |
Brass / C.I. |
C.I. |
| Stator Shell |
S.S. |
S.S. |
S.S. |
| End Ring |
E.C. Copper |
E.C. Copper |
E.C. Copper |
| Hardware |
S.S. - 304 |
S.S. - 304 |
S.S. - 304 |
|
Range: |
• V – 3 0.50 H.P. To 1.25 H.P. Single Phase only.
• V – 4 0.50 H.P. To 2.00 H.P. Single Phase 1.00 H.P. To 5.00 H.P. Three Phase.
• V – 6 3.00 H.P. To 15.00 H.P. Three Phase only. |
Application: |
• Pumping water from Bore of 80 mm, 100 mm, 130 mm, 150 mm and above.
• Domestic water Supply to Residence, Multistoried Building, Housing Complex, Bungalow.
• Public Water Supply Schemes in Urban and Rural area.
• Industrial Water Supply.
• Irrigation Systems Like Drip & Sprinkler.
• Garden, Nurseries, Hotels etc. |
Note: |
The above given technical specification may be change or very without prior notice due to continues research & development in the product. |
|
